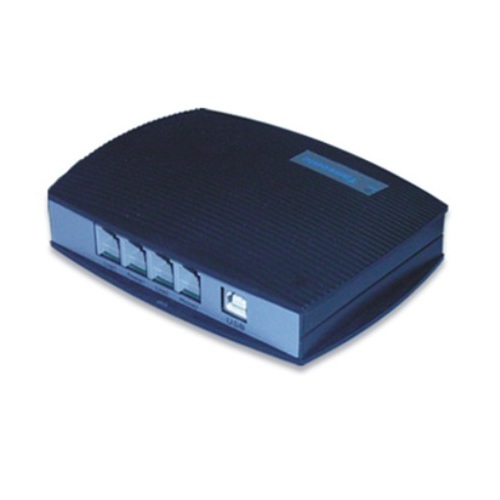

Modem ghi âm điện thoại 1 line Tansonic TX2006P111 USB
Tansonic TX2006P111 Recording USB Box is the single
line recording system,It uses the USB connecting port with the PC.It
with the function of Caller ID,Out-going call record,Incoming call
number pop,Business management,Monitor real time and so on .It can be
widely used in commercial call,electric power dispatch,hotline
call,complaint call,financial and stock,traffic and transportation,and
so on.Appropriate situation few lines users.
Product Description:
APP characteristic:
1、Monitoring people service atttitude、technology level:Examining
working ability of service person; Analyzing product problem: Collecting
customer’s advice in order to provice with product improvement base.
2、Monitoring enterprise operation and checking utilization rate of call
and human resource for high rank people.Can also find action of benefit
damage quickly and do some relevant measure to prevent
that.Futhermore,phone recording system can make people devote themselves
to work and improve working efficiency.Therefore can search new sales
potential and orientation,also can provide with unexpected law proof for
high rank people.
3、Helping sales know well about customer’s status in time and improving
rate of business conclusion so that enterprise can train sales
pointedly.
4、It can start the voice mail box and let customer leave some message when no person is on duty.
5 、Offering evidence directly for some special occasion.
6 、Offering effect evidence for other field.
7、Popup the customer’s detailed information.
Main function:
1、Software Operation system.
Supports windows 2000/NT/XP/2003/Vista Simplified Chinese version,Traditional Chinese version,English Operation system.
2、Unanswered Call
If your telephone line has the CID function , and an incoming call was
unanswered, the system would detect the CID and record it automatically .
3、Ulti-way of starting record
The system has Pressure Control,Key Control,Sound Control and so
on..Start time of recording can be set freely –can record some duration
,or record whole a day.
4、Direction confirmation
Incoming call and Out-going call number automatically detection.
Remark: If you need caller id function,and your outside line must be have caller id function.
5、Real time monitoring
Can monitor the channel on conversation without any disturbance to the line.
6、Recording circularly Automatically
Can set 4 disk at most, which is harddisk or subarea .When the system
operation disk will be fully,system will delete the foremost file
automatically.So that the system can operate.
7、Backup Automatically
According to the customer’s need,it can back up some important information through this function automatically.
8、Call Management
Advanced call management function-Can list ,print and statistical all incoming and outgoing call number .
9、Log Management
The system has the integrity operation log,it can record all of the system operation.
10、Business Management
It can pop up the client’s detail information of incoming call if you
add the client information to your information bank.. It also can record
your client’s address,telephone number, business record and so on
contents.This function becomes your business helper.
11、Long- distance Management(FTP)
It can upload the recording file to Server by FTP upload function,so
that you can listen the recording even if you go on errands.
12、User management
The system have multilevel user management function, different popedom use different function.
Technic Parameter:
-
Channel:1 CH.
-
Compression times: 5 compression rate.
-
Default recording start mode: Voltage.
-
Consume power maximai: ≤10W
-
Temperature: 5℃-40℃
-
SNR: 60dB
-
Humidity: 5%-85%
-
Requency: 300-3400Hz(±3dB)
-
Input impedance :AC<8MΩ,DC<100KΩ
-
Data speed: 16 Kbps、32Kbps、64kbps/1s
-
Interface mode:RJ11
-
Distortion degree: ≤2%
-
Call number: FSK、DTMF
-
FSK concoct mode: Logic 0: 2200Hz±1%,Logic 1: 1200Hz±1%
-
Calling Monitoring :Signal sound 、Voice、Polarity reversal.
-
DTMF code: 0~9、*、#、A、B、C、D
-
Exchange function:256 channel exchange directly.
-
Voice file: WAV
-
Voltage control mode estimation standard 40-120V(Ringing) 18-48(Idle) 5-17V(Hook off) 3.2V (Hook on)
PC Requirement:
In order to
make Tansonic digital Phone Recording System operation normally,We
recommend PC requirement according the following :
-
WindowsNT、Windows2000 or Windows XP operation system.
-
CPU Speed > 800MHZ Pentium
-
Can use PCI slot ,more than one USB connection
-
Memory:256M
-
Harddisk 80G above, (Can record 180h in harddisk 1G.)
-
Audio Box
-
Other equipment of computer
Approprite Situation:
Appropriate situation normal line or
trunk line,extension line,PBX line,ISDN,Group phone system.And PBX in
need of recording occasion and detail customer’s information.
